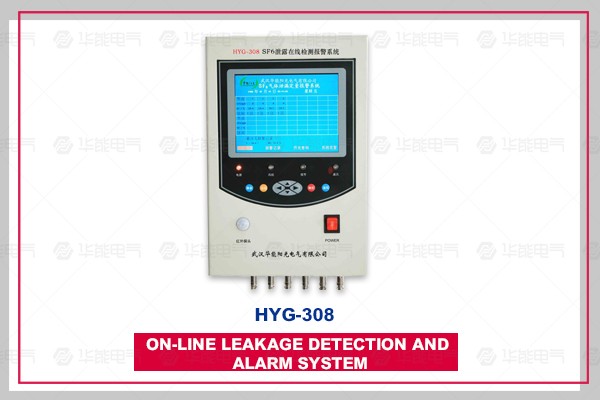

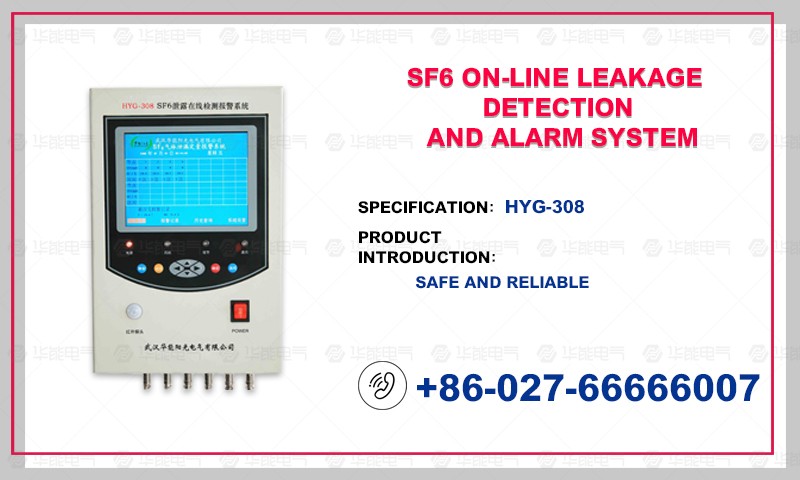

HYG-308 SF6 leak online detection and alarm system is an intelligent online detection system designed and developed to provide personal health and safety protection for the staff in the distribution equipment room equipped with SF6 equipment in accordance with the current situation of emphasizing safe production in the power system.
For service of product purchase and technical maintenance, please call 4008828058
HYG-308 SF6 leak online detection and alarm system is an intelligent online detection system designed and developed to provide personal health and safety protection for the staff in the distribution equipment room equipped with SF6 equipment in accordance with the current situation of emphasizing safe production in the power system.
The system mainly detects the SF6 gas content and oxygen content in the ambient air. When the SF6 gas content in the environment exceeds the standard or lacks oxygen, it can alarm in real time, and automatically open the ventilator for ventilation. It has many rich functions such as temperature and humidity detection, voice prompt of working status, remote alarm, historical data query and so on.
Equipment life: more than 10 years
work environment
Temperature range: -25 ~+50
Humidity range: <95%RH
Seismic magnitude: 7 degrees
Atmospheric pressure: 86 kPa-106 kPa
SF6 measurement index
Measurement range: 0-30 000 ppmv
Alarm point: can be set in the measurement range, default 1000ppmv
Citation error: 0-2000 ppm (+3%) FS; 2000-30 000 ppm (+2%) FS
Repeatability error: < 5% FS
Zero drift: <5%FS
Range drift: < 5% FS
Oxygen measurement index
Detection concentration: 0-35%
Oxygen concentration alarm point: 18%
Accuracy of oxygen measurement: <0.4%, when O2 is 21%.
Other indicators
Temperature measurement range: - 25 ~+99
Humidity measurement range: 0-99% RH
Working power supply: AC 220V, optional DC 110V, 220V
Switch Output Capacity: 24V/48V/110V/220V, 3A
Fan Output Contact Current: AC380/45A (customizable according to user needs)
Fan Ventilation Time Setting: Settable, default 15MIN/time
Communication mode: RS-485 bus mode
Communication Protocol: General Electric Power Communication Protocol
Insulation Performance Shell and Power Supply: > 10M
Electrical Resistance Shell and Power Supply: > 2000V
Electromagnetic Compatibility Characteristics: Fast Transient Pulse Group GB/T17626.4-1999 Level 3
Lightning Stroke (Surge) GB/T 17626.5-1999 Level 3
Note: product appearance is subject to actual product, technical parameters and models are subject to change without prior notice. For more information on the list of products of huaneng products. National service hotline 4008828058
