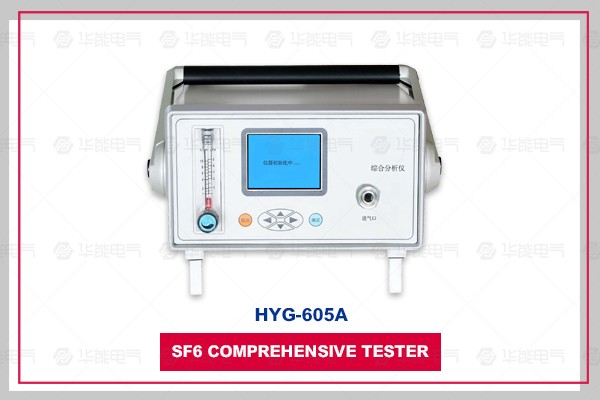

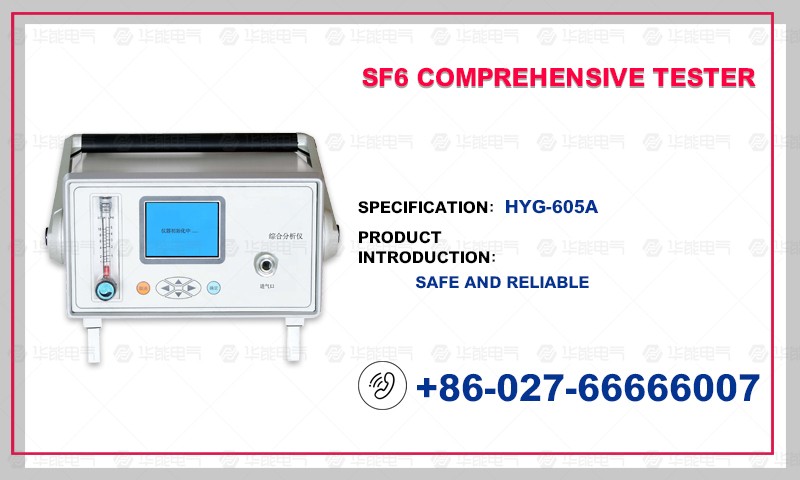

SF6 comprehensive tester is a combination of SF6 micro-water meter, SF6 purity meter and SF6 decomposition product analyzer. It concentrates on one instrument with three instruments.
For service of product purchase and technical maintenance, please call 4008828058
SF6 comprehensive tester is a combination of SF6 micro-water meter, SF6 purity meter and SF6 decomposition product analyzer. It concentrates on one instrument with three instruments. Three indicators can be detected by one field measurement, which saves gas in the equipment greatly, saves 2/3 gas consumption in one measurement, reduces the workload of users and improves work efficiency.
Purity (optional)
measuring range:0%~100%
measurement accuracy:+ 0.5%
Measuring time:<2 minutes.
The dew point
measuring range:-80℃~+20℃.
measurement accuracy:±1.0 (-60℃ +20℃)
±2 (-80℃~60℃)
Response time (+20 ℃):63% takes 5 seconds, 90% takes 45 seconds (-60℃ +20℃)
63% takes 10 seconds and 90% 240 seconds (+20℃ ~60℃)
H2S
measuring range:0~100ppm
Minimum Detection Quantity:Less than 0.1ppm
Accuracy:+ 0.5%
Repeatability:Less than 2%
SO2
measuring range:0~100ppm
Minimum Detection Quantity:Less than 0.1ppm
Accuracy:+ 0.5%
Repeatability:Less than 2%
HF (optional)
measuring range:0~20ppm
Minimum Detection Quantity:Less than 0.01ppm
Accuracy:+ 0.5%
Repeatability:Less than 2%
CO (optional)
measuring range:0~1000ppm
Minimum Detection Quantity:Less than 1ppm
Accuracy:+ 0.5%
Repeatability:Less than 2%
ambient temperature:-30℃ +60℃
Ambient humidity:0-100% RH
Power Supply:AC 220V
Built-in rechargeable battery
Battery performance:Charging time: 20 hours; using time more than 10 hours.
weight:5 kilograms
size:50 x 150 x 300 mm3
working temperature:-40℃~+80℃
Note: product appearance is subject to actual product, technical parameters and models are subject to change without prior notice. For more information on the list of products of huaneng products. National service hotline 4008828058
Fast gas saving: After starting up, the measuring time of every SF6 dew point is about 5 minutes, and the measuring time of SF6 purity and SF6 decomposition is about 2 minutes.
Self-locking connector: The self-locking connector imported from Germany is safe and reliable with no leakage.
Data Storage: With large capacity design, up to 200 sets of test data can be stored.
Curve function: Large screen curve shows dew point measurement process.
Clear display: LCD screen directly displays dew point, micro-water (ppm), SF6 purity, SO2, H2S, CO and HF content, environmental temperature, environmental humidity, time and date.
Built-in power supply: Built-in 4Ah rechargeable lithium batteries, sufficient once can work for 10 hours continuously.
