It is used in power system, petroleum, chemical industry, railway, power plant, electrical equipment factory, etc. It conducts power frequency voltage withstanding test for transformer oil, capacitor oil, power equipment, insulating tools, insulating materials, electrical equipment factory, etc. Its voltage range is AC0-80KV.
Implementation standards can be designed according to customer needs!
For service of product purchase and technical maintenance, please call 4008828058

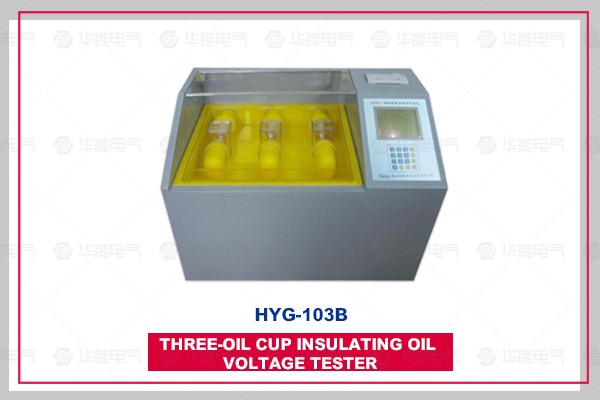

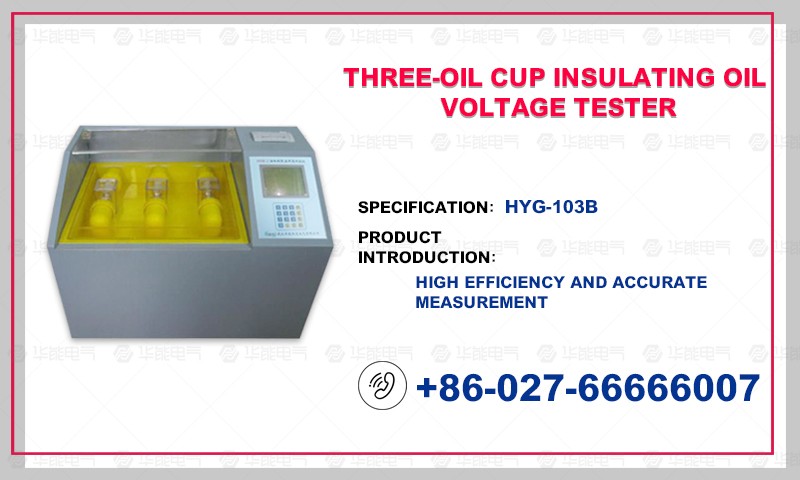

103B oil cup insulating oil withstand voltage tester is a fully automatic intelligent insulating oil withstand voltage tester developed by Wuhan Huaneng Sunshine Electric Co., Ltd. on the basis of the 0510 series insulating oil withstand voltage tester, which has been developed by Wuhan Huaneng Sunshine Electric Co., Ltd. through 10 years of market sales and technical innovation of function optimization, and combined with the valuable feedback from the vast power sector and petrochemical industry sector. 103B is 103's simplicity. Chemicals version three cups cycle test.
103 Triple Oil Cup Insulating Oil Voltage Tester and won a national invention patent in March 2012, patent number: 2010154684.2
The 103B three-oil cup insulating oil withstand voltage tester is equipped with three test oil cups. Various test procedures can be selected according to the need, and three oil cups can be selected for simultaneous test, which greatly shortens the test time. The instrument is a multi-oil cup pressure tester with fully automatic intelligent program control function and reliable performance. Users only need to select test program or custom program, the instrument can automatically complete the whole test process, and store and print test reports.
The test voltage ranges from 0 to 80 kV, and the measurement accuracy is 3%.
Short breakdown time less than 1 ms, small cut-off current range: 1.0 mA-25 mA; set value is 11 mA
Real-time network breakdown monitoring computer control system, fast cut-off less than 1 ms. Good repeatability, avoid carbonization of insulating oil or formation of fibers;
Implement domestic standards GB507-2002, IEC156;
Microprocessor, precise standard sinusoidal generator circuit and variable ratio and feedback monitoring circuit are used to improve the accuracy, real-time and reliability of measurement.
160 *128 LCD (4.7 inches);
Chinese friendly interface, Chinese menu operation;
Built-in printer, can query and print test reports;
Oil-proof panel and easy-to-read menu operation, providing the best user interface and oil leakage tank;
The test report can be recorded automatically and 255 items can be saved.
Boost Rate: Using electronic voltage regulation innovation technology, accurate boost (2.0, 2.5, 3.0 kV/S) adjustable
Voltage measurement accuracy and display resolution: 0.1kV
Total power: 1.5 kVA
Breakdown cut-off time: 1ms
Input power supply: AC 220V + 10%, 50HZ + 5%
Working temperature: - 2 - 45.
Oil Cup Capacity: 300ml
Storage temperature: 5 - 30 C (dry ventilation) ambient temperature: <80% RH
Volume: 66 cm x 44 cm x 48 cm (length x width x height)
Packing wooden case: 90cm * 60cm * 65cm (length * width * height)
Weight: 50KG
Note: product appearance is subject to actual product, technical parameters and models are subject to change without prior notice. For more information on the list of products of huaneng products. National service hotline 40088280581. Special breakdown detection circuit, online real-time breakdown monitoring, to ensure short-term breakdown, quick return to zero, to ensure that breakdown time is less than 1 ms, to avoid carbonization of insulating oil or formation of fibers; cut-off current is less than 5 mA and can be arbitrarily set to cut-off current of 1.0 mA-35 mA; to ensure multiple breakdown of insulating oil without affecting the phenomenon of shutdown and black screen.
2. The micro TPU-A panel printer is used to print out automatically at one time.
3. The instrument uses full-automatic magnetic oscillator stirring to eliminate the non-uniformity of oil samples and bubbles.
4. Precision standard sinusoidal generator circuit and variable ratio and feedback monitoring circuit to ensure accurate measurement.
5. Intelligent program control, through three times boost three cups of test products can be cyclically tested, greatly shorten the test time, improve work efficiency.
6. The oil cup has built-in adjusting nuts, which can adjust the distance between electrodes quickly, simply and accurately for easy calibration.
