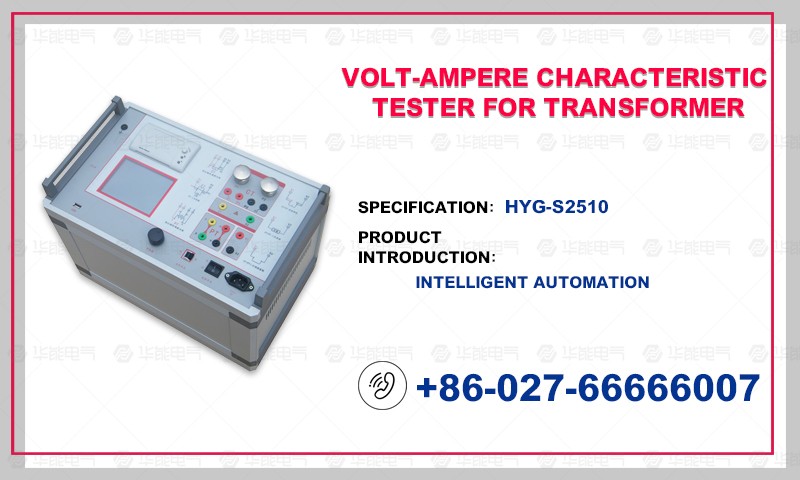

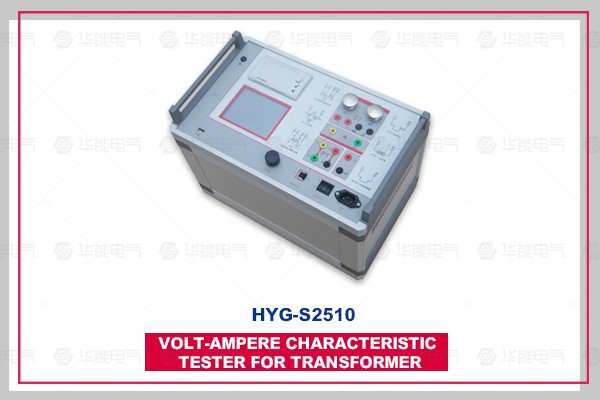

It is designed for automatic testing of protective and metering CT/PT. It supports current and voltage methods. It can test bushing CT installed in transformer or switchgear. It is also suitable for laboratory and field testing. Reference Standards: GB 1207-2006, GB 1208-2006.
For service of product purchase and technical maintenance, please call 4008828058
It is designed for automatic testing of protective and metering CT/PT. It supports current and voltage methods. It can test bushing CT installed in transformer or switchgear. It is also suitable for laboratory and field testing.
Reference Standards: GB 1207-2006, GB 1208-2006.
Working power supply:AC220V + 10%, 50Hz
Device output:0-2500Vrms, 5Arms (20A peak)
Excitation accuracy:Less than 0.5% (0.2% * reading + 0.3% * range)
High current output:0 ~ 1000A
Resistance Measurement of Secondary Winding
Range:0.1 ~ 300 ohm
accuracy:Less than 0.5% (0.2% * reading + 0.3% * range)
Second Actual Load Measurement
Range:5 ~ 1000VA
accuracy:Less than 0.5%(0.2%*reading+0.3%*range)+0.1VA
Angle difference
accuracy:+ 4min
Ratio difference
accuracy:Less than 0.05%
CT Variable Ratio Measurement
Range:5-25000A/5A (5000A/1A)
accuracy:Less than 0.5%
PT Variable Ratio Measurement
Range:1-500KV
accuracy:Less than 0.5%
work environment
Temperature: -10 ~40 C, humidity: <90%, altitude: <1000m
Size, weight
Size: 410mm * 250mm * 300mm, weight: < 22Kg
Note: product appearance is subject to actual product, technical parameters and models are subject to change without prior notice. For more information on the list of products of huaneng products. National service hotline 4008828058
The principle of current method and voltage method is used to detect casing CT conveniently.
Support the detection of CT and CT.
All testing items can be completed on a single computer without additional auxiliary equipment.
It has a miniature fast printer and can print test results directly on the spot.
Intelligent controller, simple operation.
Large screen LCD, graphical display interface.
The inflection point of CT/PT (excitation) is given automatically according to the regulation.
The error curves of 5% and 10% are given automatically.
It can save 3000 sets of test data without loss after power failure.
Supporting U-disk to save data, can be read by standard PC, and generate test reports.
It's compact and portable < 22Kg, which is very convenient for field test.
Main test functions of the tester: (see table below)
CT (Protection and Measurement)
Volt-ampere characteristic (excitation characteristic) curve
Give inflection point value automatically
The error curves of 5% and 10% are given automatically.
Variable ratio measurement
Ratio difference measurement
Phase (angular difference) measurement
Polarity judgement
One pass test
AC withstand voltage test
Secondary load test
Secondary winding test
Core demagnetization
CT Detection of Supporting Casing
PT
Volt-ampere characteristic (excitation characteristic) curve
Give inflection point value automatically
Variable ratio measurement
Polarity judgement
Ratio difference measurement
Phase (angular difference) measurement
AC withstand voltage test
Secondary load test
Secondary winding test
Core demagnetization
