The instrument adopts a new power supply technology. It has the characteristics of small size, light weight, large output current, good repeatability, strong anti-interference ability and perfect protection function. The whole machine is controlled by a high-speed single-chip computer with high automation and automatic discharge and discharge alarm functions. The instrument has the advantages of high accuracy, simple operation and fast measurement of transformer direct resistance.

Product Manuals Product report Technology articles

For service of product purchase and technical maintenance, please call 4008828058

PRODUCT INTRODUCTION
PRODUCT ATLAS
PRODUCT OPERATION VIDEO

INTRODUCTION

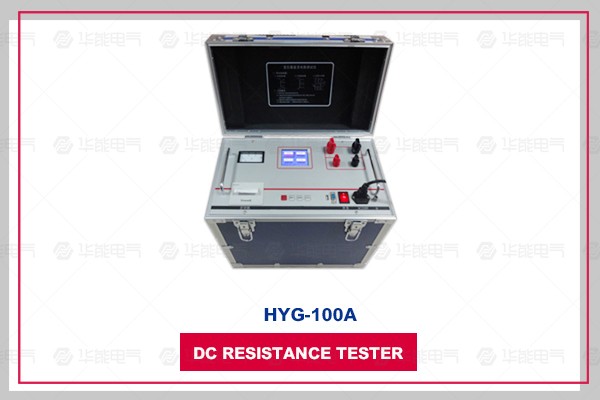

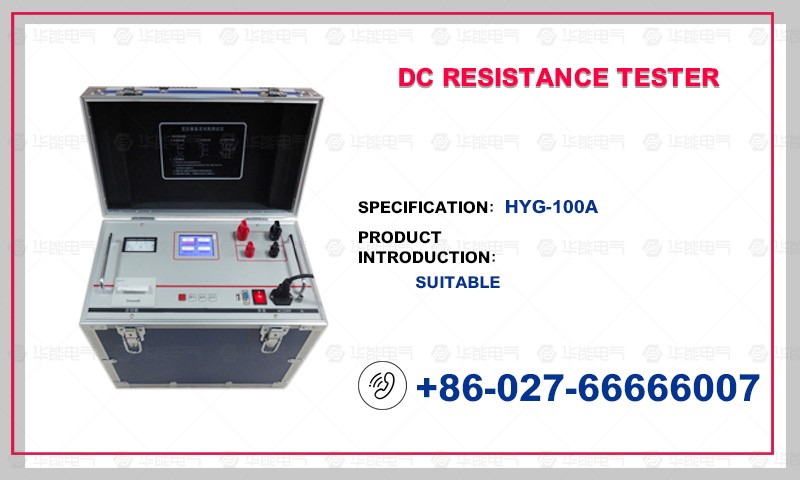

Transformer DC resistance is a necessary test item for semi-finished products, factory test, installation, overhaul, after changing tap-changer, handover test and preventive test of power department in transformer manufacturing. It can check the welding quality of winding joint and whether winding has turn-to-turn short circuit. It can check whether the contact of voltage tap-changer is good or not, whether the actual position of tap-changer is in conformity with the indicated position, whether the lead-out wire is broken, and whether the multiple wires are broken or not. In order to meet the need of fast measurement of transformer DC resistance, our company developed HYG-100A DC resistance tester. The instrument adopts a new power supply technology. It has the characteristics of small size, light weight, large output current, good repeatability, strong anti-interference ability and perfect protection function. The whole machine is controlled by a high-speed single-chip computer with high automation and automatic discharge and discharge alarm functions. The instrument has the advantages of high accuracy, simple operation and fast measurement of transformer direct resistance.
PARAMETERS

Output current: 100A, 50A, 20A, 10A, 5A

Minimum Resolution: 0.1_

Range: 100A:50_~100m_50A:100_~200m_

20A:200_~800 m_10A:500_~2_

5A:1m_~4

Accuracy: (+0.2%+2 words)

Working temperature: 0-40

Working humidity: < 90% RH, no dew

Shape size: 400 mm long, 225 mm wide and 350 mm high

Weight: 15KG without test line
Note: product appearance is subject to actual product, technical parameters and models are subject to change without prior notice. For more information on the list of products of huaneng products. National service hotline 4008828058
FEATURES

The whole machine is controlled by a high-speed single-chip computer, which is highly automated and easy to operate.

The instrument adopts a new power supply technology with many current shifts and wide measuring range. It is suitable for DC resistance measurement of large and medium transformers.

The protection function is perfect, which can reliably protect the impact of back EMF on the instrument, and the performance is more reliable.

It has sound discharge alarm, clear discharge indication, and reduces misoperation.

The response speed is fast, and the on-load tap-changer can be directly transformed in the measurement state, and the instrument can automatically refresh the data.

Intelligent power management technology, the instrument works in the minimum power state, effective energy saving, reduce fever.

The 65K true color liquid crystal with 320X240 dot matrix and super-small pixels,

The instrument has its own calendar clock and power-off storage. It can store 1000 sets of test data and can be consulted at any time.

The instrument is equipped with RS232 and USB interface. It can communicate with computer and store on U disk.
