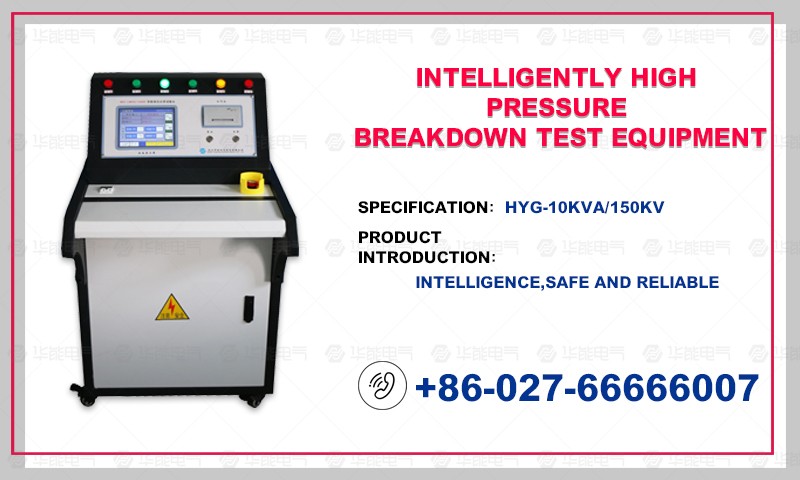

HYG-10KVA/150KV Intelligent High Voltage Breakdown Testing Device is designed in accordance with the latest national power industry standard GB/T1408.1-2006/IEC60243-1:1998 to replace GB/T1408.1-1999 (issued from November 2006 to 09 2007-4-01) electrical strength testing method for insulating materials (Part 1: power frequency test).
Our company can customize any parameters of non-standard pressure products and equipment!
For service of product purchase and technical maintenance, please call 4008828058
HYG-10KVA/150KV Intelligent High Voltage Breakdown Testing Device is an advanced intelligent voltage withstanding test equipment designed in accordance with the latest national power industry standard GB/T 1408.1-2006/IEC 60243-1:1998 to replace GB/T 1408.1-1999 (issued from 2006-11-09 2007-4-01 implementation) electrical strength test method for insulating materials (Part 1: under-power frequency test). It is used for various electrical products, electrical components, and components. Insulating material and so on carries on the insulation strength test under the stipulated voltage, in order to examine the product's insulation level, discovers the insulation defect of the tested product, and measures the ability of overvoltage. It is widely used in electrical manufacturing department, electric power operation department, scientific research institutes and universities.
| Specifications | capacity | Input power supply | Output Voltage | Weigh（kg） |
|||
Phase number
|
（V） |
（A） |
（V） |
（A） |
|||
10/220 |
10 |
1 |
220 |
50 |
0-220 |
50 |
30 |
3. Test transformer parameters: (conventional parameters see table below)
Specifications |
capacity kVA |
Low pressure side | High pressure side | High Voltage Side (AC/DC Transformer) |
Measurement variation ratio | 60 minutes temperature rise | Impedance voltage%
|
No-load current% |
quality kg |
|||
| Voltage V |
Electric current
A |
AC output |
|
|||||||||
Voltage kV |
Electric current
mA |
|
|
|||||||||
10/150 |
10 |
200 |
50 |
150 |
66.7 |
|
|
1000 |
50 |
10 |
<4 |
90 |
1. 160X120 LCD and 40-line high-speed needle printer.
2. High-voltage voltage, high-voltage current, low-voltage voltage, low-voltage current four measurement methods, high-precision sensors and high-performance 14-bit AD acquisition chip.
3. Man-machine dialog keyboard operation mode, the whole process of intelligent work, three test modes: manual boost test, continuous boost test and step-by-step boost test.
4. Various boost speeds can be selected to meet the requirements of boost and boost speeds in different tests.
5. Real-time display of high-voltage voltage, high-voltage current, low-voltage voltage voltage, low-voltage current, time and withstand voltage results, showing intuitive and clear.
6. Perfect over-voltage and over-current protection, arbitrarily set the maximum voltage, high-voltage current upper limit, low-voltage current upper limit and time.
8. Uniform step-up test: After setting the maximum voltage and time, the test is completed in one-stop mode.
9. Step-by-step boost test: starting voltage can be set, voltage increment can be calculated automatically or manually, step-by-step boost and timing auto-cycle can be set to the highest voltage in the test;
10. Stage boost test: setting the highest voltage, automatically calculating the voltage value of the front and back range, the boost speed of the front and back range, and completing the test in two stages, until the end of the front and back time or breakdown phenomenon;
11. It has the function of zero-return detection, and can be tested only after the zero-return is confirmed. It is safe and reliable.
12. Approximate voltage regulation algorithm, automatic withstand voltage timing after reaching the set voltage, automatic step-down and return to zero after the end of the timing.
13. When the voltage exceeds the set high voltage current or low voltage current, the output voltage is automatically cut off, the voltage is reduced to zero, and an acoustooptic alarm occurs.
14. The prompt information is convenient for guiding operation. Boost pressure can only be achieved by touching and clicking on the "start" button before touching and clicking on the "boost" button to switch the button, so as to prevent repeated press of a key fatigue or inactive operation from causing danger.
15. During the test, any test can be withdrawn according to "start/stop". If the test is abnormal, the high voltage output can be cut off by pressing the emergency switch.
16. Excellent hardware and software anti-interference design, a variety of anti-interference means, to adapt to harsh electromagnetic environment.
17. Automatic error diagnosis, easy to find and solve problems.
